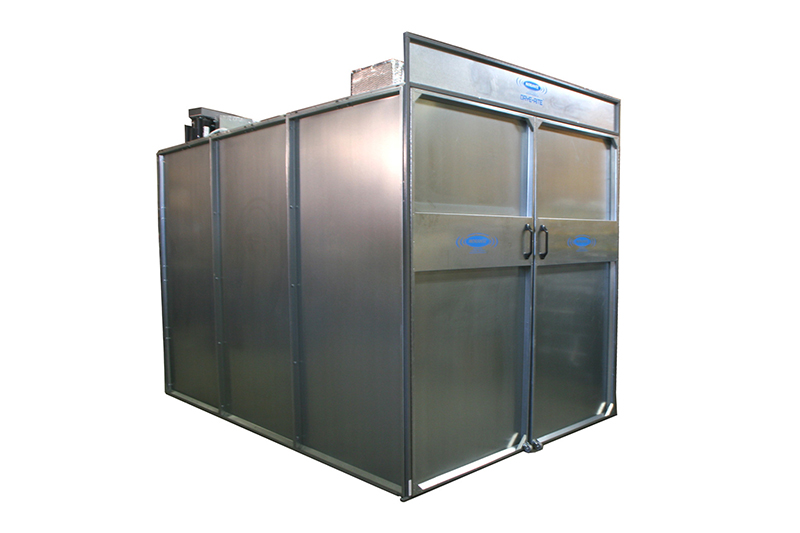

Drye-Rite-XL Drying Room

Drye-Rite-XL Drying Room

DR-XL
The World's First Portable Drying and Ozone Room

Description

The Drye-Rite-XL is a wonder of engineering; a portable Convection Air Drying and Ozone Room! Equipped with panels that can be adjusted to the size you need, the Drye-Rite-XL can be transported to and setup on-site for large loss/volume drying. For smaller drying jobs, the panels can be arranged to reduce the size of the room and shorten drying times.

Additional Options include (ask your Morantz Representative for details):

  • Infrared Boost/Heat: Ideal for electronics
  • Ozone System: Increase the capability of your drying room
  • Interior Lighting: To improve efficiency
  • Purchase Blowers Separately: build your own drying room at your facility

Features

  • Patented Infrared Heater Combined with Counterflow (a unique air distribution system)
  • Two Heater Assemblies Consisting of One (1) Blower and One (1) 4000W 230v Heater
  • Two Large Double Doors
  • Digital Temperature Display Readout and Controls with Push Button Settings
  • Adjustable Heat Settings
  • Digital Hygrometer to Measure Interior Humidity Levels
  • Automatic Shut-Off
  • Process Timer
  • Durable and industrial construction (16 gauge steel tubing frame and 20 gauge galvanized steel rust resistant walls)
  • Durable industrial powder coat finish
  • Heavily insulated for reduced heat loss
  • Patented infrared heater combined with convection aid & dehumidifier creating a unique air distribution system for fast air drying
  • Instructional Video and Manual
  • Free, Unlimited, Hands-on Training at our Facilities in Philadelphia
  • Free Ongoing Support

Power Requirements:

  • (1) 220v 50 amp 1ph
  • (1) 220v 30 amp 1ph
  • (1) 110v 15 amp 1ph

Dimensions

Interior Dimensions

127" W x 84" D x 84" H (Reduced Assembly: 84" W x 84" D x 84" H)
3.23m W x 2.13m D x 2.13m H (Reduced Assembly: 2.13m W x 2.13m D x 2.13m H)

Exterior Dimensions

129" W x 86" D x 86" H (98" with Blower) - [Reduced Assembly: 86" W x 86" D x 86" H]
3.28m W x 2.18m D x 2.18m H (2.5m with Blower) - [Reduced Assembly: 2.18m W x 2.18m D x 2.18m H]

Capacity

Price

Call for Pricing 215.969.0266
